SFX SUN-02 CNC Oil Skimmer & Oil-Water Separator, 30W Coolant Purifier with 9L Tank 0-90rpm Stepless Adjustable Pump Motor

ADVANTAGES & FEATURES

Efficient Oil-Water Separation: Uses a pure physical separation method to remove floating oil from water-based cutting fluids without adding chemicals, helping reduce secondary pollution and maintain cleaner coolant.

3-Stage Filtration System: The integrated 3-stage filtration system helps thoroughly filter separated liquid and contaminants, supporting cleaner operation and extending the service life of cutting fluids and machining tools.

Adjustable & Automatic Operation: The pump motor features 0–90 rpm stepless speed adjustment, allowing you to control the circulation rate according to different applications. The 0–99 hour timer supports automatic circulation and operation.

Stable Floating Oil Suction Design: The upgraded floating oil suction inlet provides stable and accurate positioning of the surface oil layer, making it suitable for both relatively deep and shallow coolant tanks. The observation window and built-in light make operation and monitoring more convenient.

Reduce Coolant Costs & Improve the Working Environment: By continuously removing floating oil and impurities, the SUN-02 helps reduce coolant deterioration and unpleasant odors, extend coolant service life, reduce maintenance costs, and improve the machining environment. The caster design also makes the unit easy to move between machines.

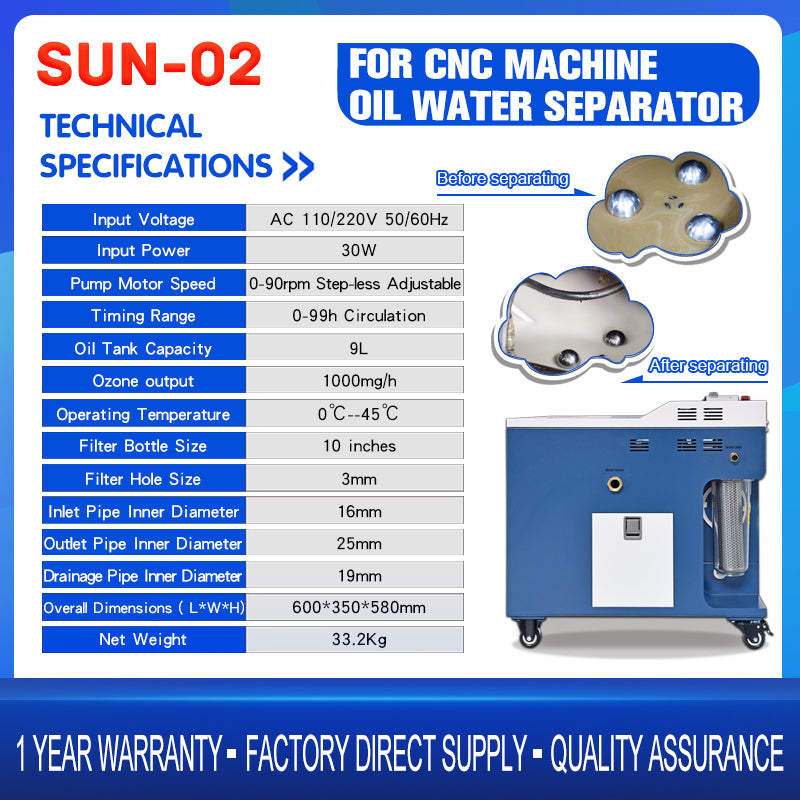

TECHNICAL PARAMETERS

• Input Voltage: AC 220V/110V, 50/60Hz
• Input Power: 30W
• Pump Motor Speed: 0-90rpm Step-less Adjustable
• Timing Range: 0-99h Circulation
• Oil Tank Capacity: 9L
• Operating Temperature: 0℃-45℃
• Filter Bottle Size: 10 inches
• Filter Hole Size: 3mm
• Inlet Pipe Inner Diameter: 16mm
• Outlet Pipe Inner Diameter: 25mm
• Drainage Pipe Inner Diameter: 19mm
• Overall Dimensions: 600*350*580 mm
• Net Weight: 33.2Kg

SHIPPING:

• Free Shipping to Your Door by Air (DHL/UPS/FedEx) about 7-15 Days

WARRANTY:

• We provide 1 year guarantee for the whole machine and lifetime online support.
• Our after-sales team, certified with five-star service, provides remote support and lifetime online assistance.
• All our machines have complied with local rules and regulations and have certificates.
