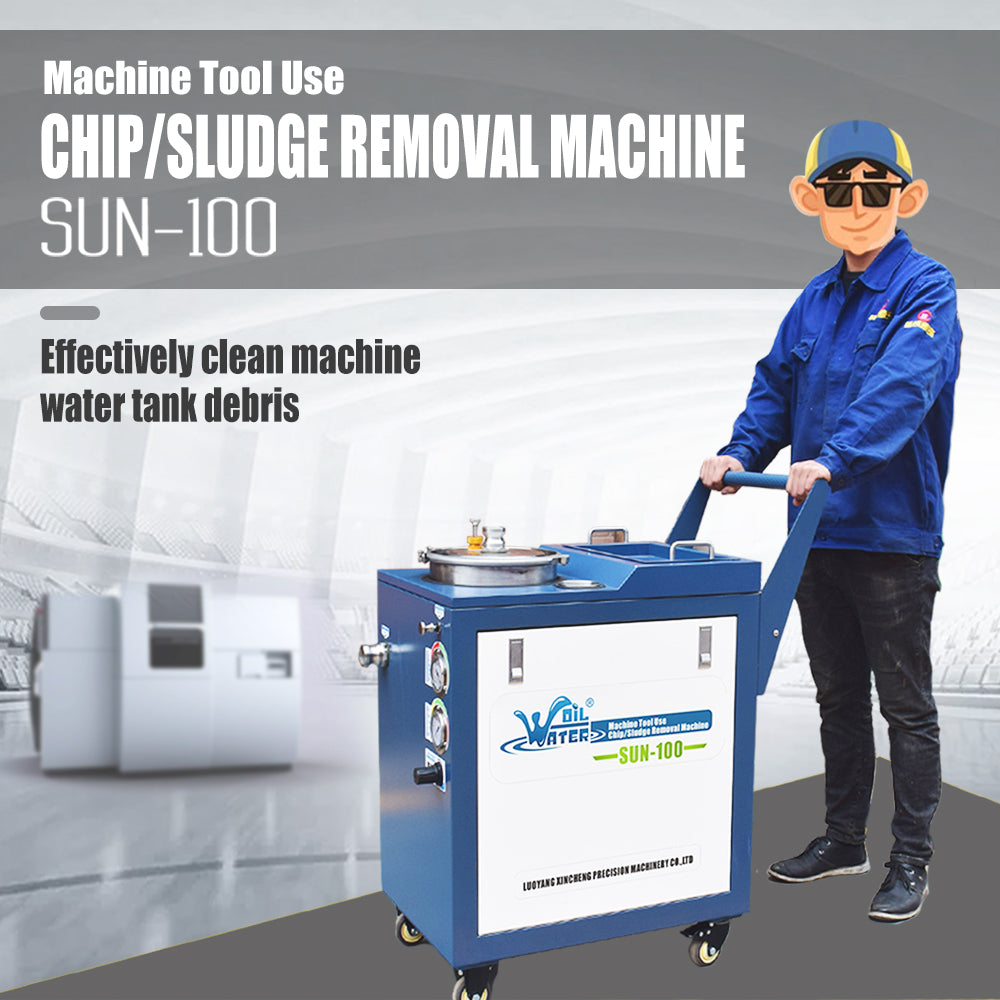

SFX SUN-100 Chip and Sludge Removal Machine for CNC Machine Tool Cutting Fluid Cleaning 100L/min Coolant Tank Cleaner

ADVANTAGES & FEATURES

• Clean Coolant Tanks Without Stopping Production: The SUN-100 removes metal chips, sludge and other impurities from machine tool water tanks quickly and easily — no need to stop the machine tool, so your CNC machines stay productive while cutting fluid is fully recycled.
• 100L/min High Flow for Fast Cleaning: A large processing flow of 100L/min water absorption means one coolant tank can be cleaned in a fraction of the time of manual cleaning — saving labor hours and production downtime.
• Durable 304 Stainless Steel Filter Drum: The large-capacity filter drum is made of 304 stainless steel, rustproof and durable for long-term daily use in the workshop, with plenty of room to hold chips, sludge and debris between emptying cycles.
• Portable, Shareable & Easy to Operate: Easy to move between machines, one SUN-100 can be shared by multiple machine tools in rotation. Switch and gauge are mounted on the front for simple operation, with a buffer design that reduces outlet pipe vibration during use.
• Safe Design & Wide Application: Features automatic pressure relief after over-pressure for safer operation. Works with metal and non-metal scraps, sludge and similar impurities in coolant tanks, and can also be used as a pump for water, water-based cutting fluid and non-volatile oily liquids. Not for strong acids, alkalis or organic solvents.

TECHNICAL PARAMETERS

• Model: SUN-100
• Power Source: Pneumatic
• Air Pressure Range: 0.4-0.7Mpa
• Pipe Diameter: 10mm
• Air Consumption: 1-1.7m3/min
• Max Suction Distance: 5m
• Max Flow rate: 100L/min
• Filter Storage Capacity: 9L
• Filter Mesh Accuracy: Standard 0.4mm Optional 1mm
• Max. Particle Dia.: 10mm
• Viscosity Range: ≤3000cps (25°C)
• Operate Temperature: 0°C--60°C
• Overall Dimension: 800*450*960mm
• N.W: 67±1Kg

SHIPPING:

• Free Shipping to Your Door by Air (DHL/UPS/FedEx) about 7-15 Days

WARRANTY:

• We provide 1 year guarantee for the whole machine and lifetime online support.
• Our after-sales team, certified with five-star service, provides remote support and lifetime online assistance.
• All our machines have complied with local rules and regulations and have certificates.
